SmartPlug®
Roof Patch
The quickest and easiest way to convert static vents to ridge ventilation.

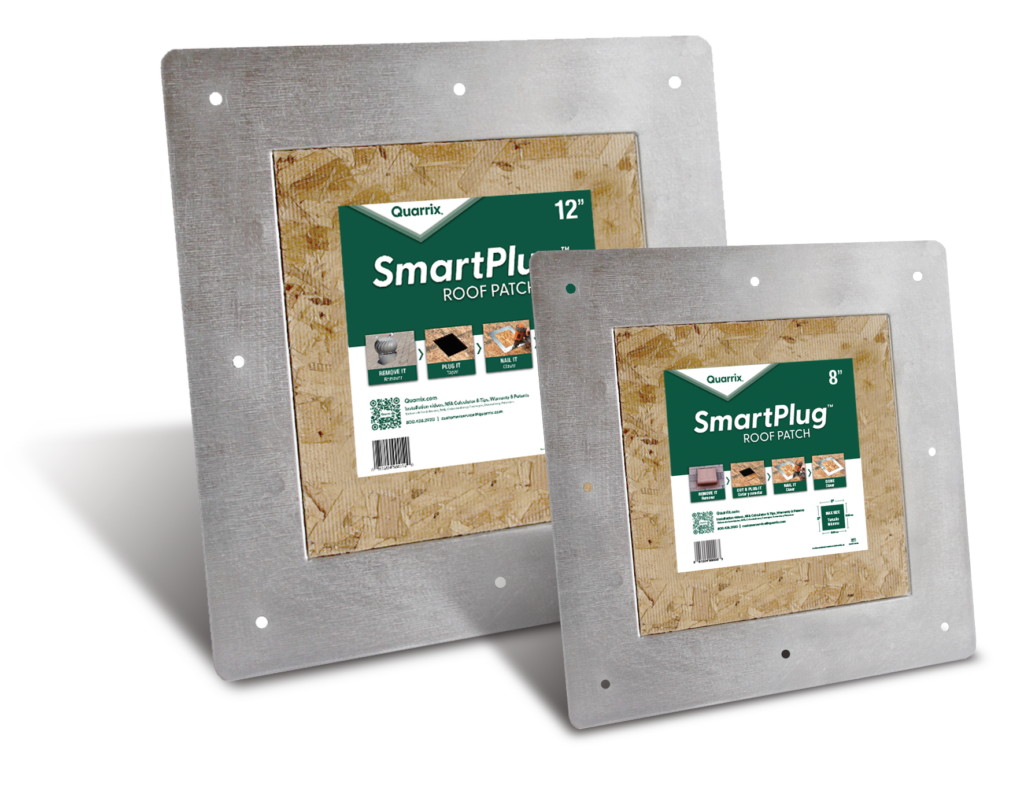

Work smarter not harder with the Quarrix SmartPlug™ Roof Patch, the quickest and easiest way to convert static vents to ridge ventilation. Available in 8” and 12” sizes, they’re made of heavy-duty 24-gauge galvanized steel with a reinforced backing that can withstand over 700 lbs. SmartPlug fits standard sized holes left by box, slant-back, and turbine vents.
Gun-nailable and made to last, simply place it, nail it, and you’re done — 60 times faster than traditional methods.
Product Features

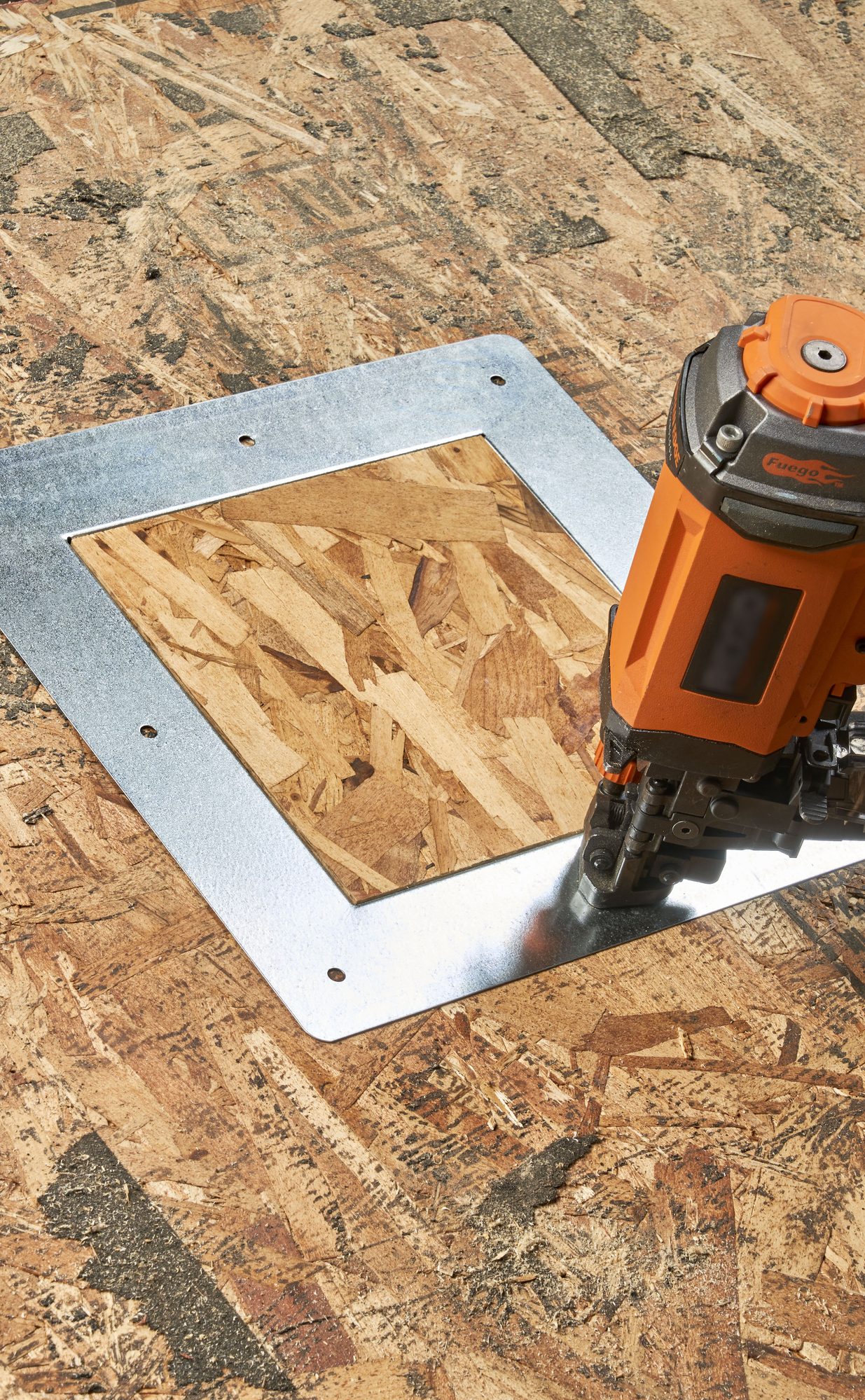

Gun Nailable
Quick and easy installation using a nail gun

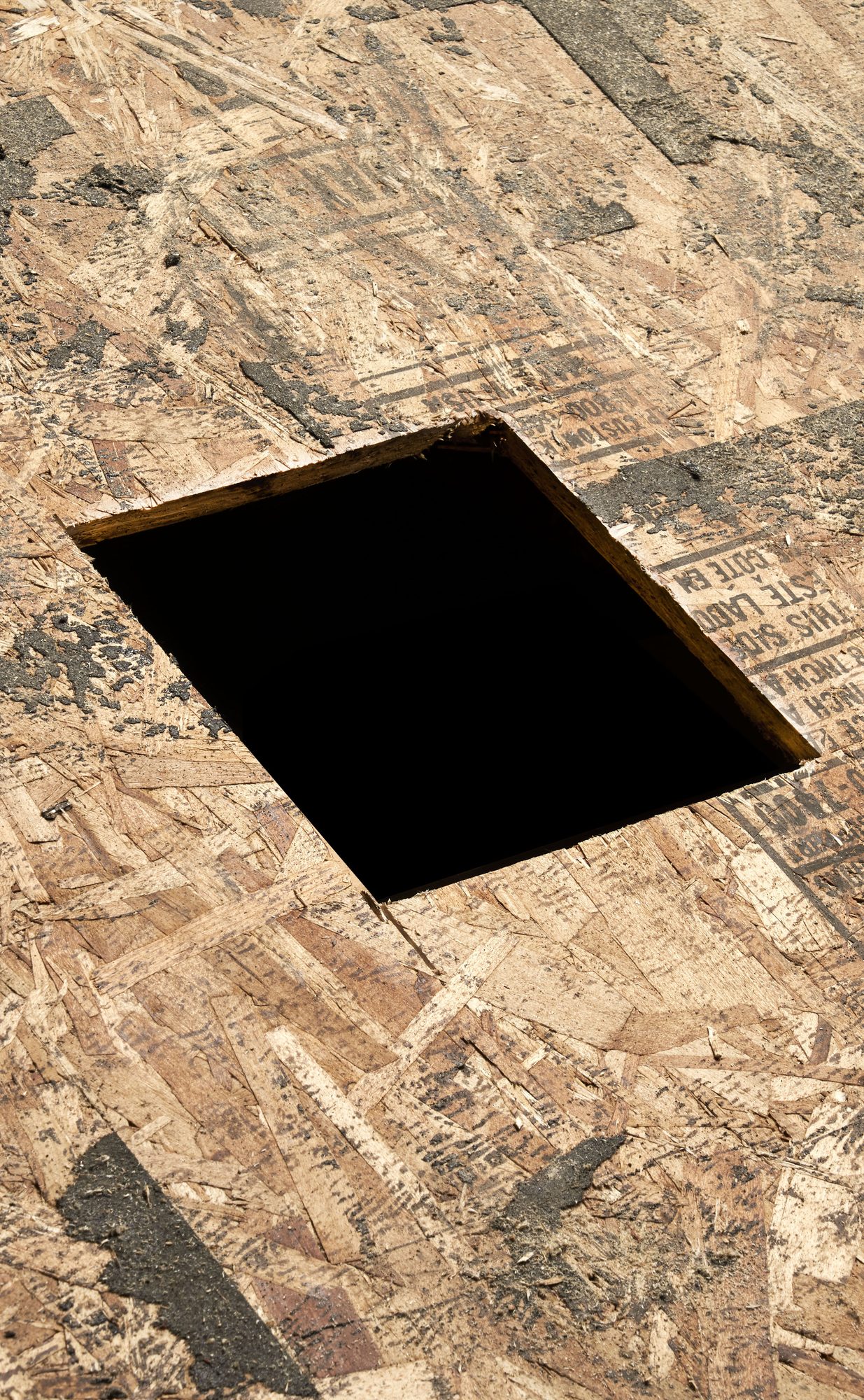

Pre Cut to Size
Available in 8” and 12” sizes

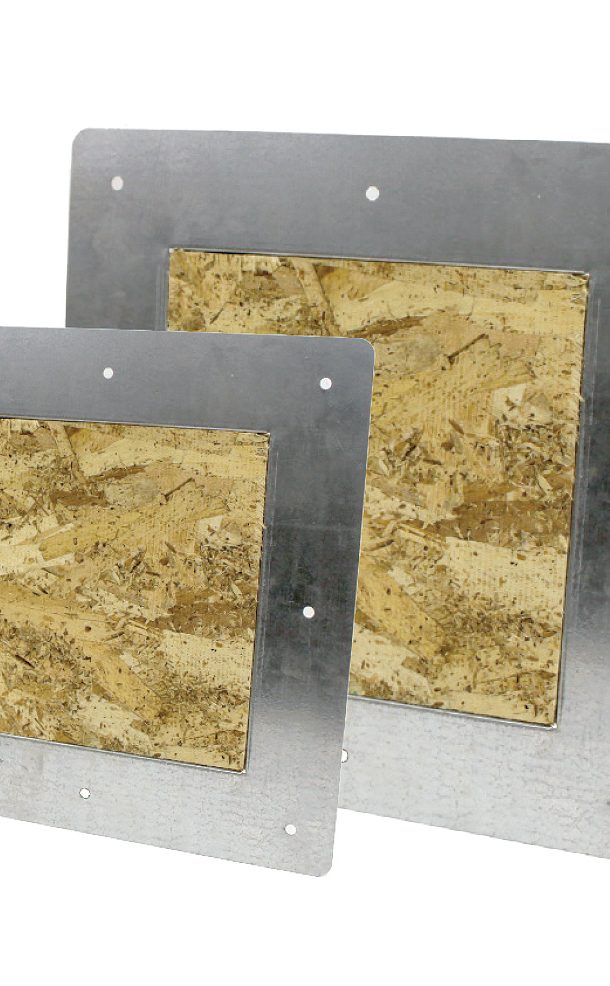

Durable Construction
Made with heavy-duty 24-gauge galvanized steel

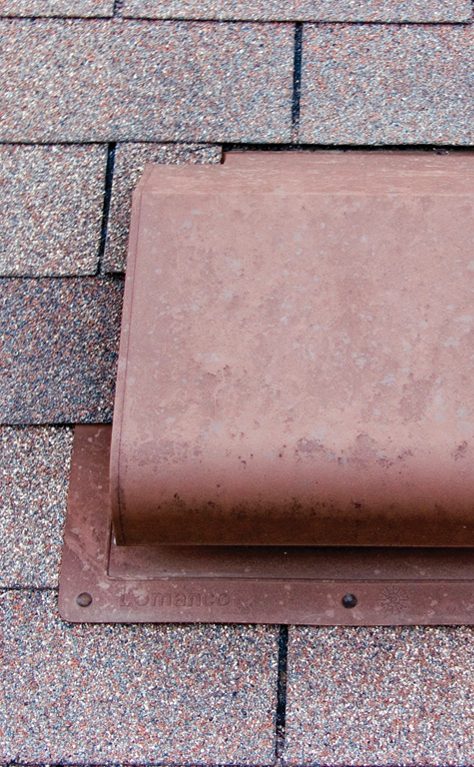

Easy Installation
60 times faster than traditional methods
Product Specifications
| PART # | #99008 | |
|---|---|---|
| PATCH SIZE | 8" x 8" (203 mm x 203 mm) | 12" x 12" (305 mm x 305 mm) |
| OUTSIDE DIMENSIONS | 12" x 12" (30.48 cm x 30.48 cm) | 16" x 16" (40.64 cm x 40.64 cm) |
| WOOD DIMENSIONS | 7⅞" x 7⅞" (20 cm x 20 cm) | 11⅞" x 11⅞" (30.16 cm x 30.16 cm) |
| THICKNESS | 7/16" (1 cm) | |
| MATERIAL | 24 Gauge Galvanized Steel and 7/16" OSB Sheeting | |
PATCH SIZE
8" x 8" (203 mm x 203 mm)
OUTSIDE DIMENSIONS
12" x 12" (30.48 cm x 30.48 cm)
WOOD DIMENSIONS
7⅞" x 7⅞" (20 cm x 20 cm)
THICKNESS
7/16" (1 cm)
MATERIAL
24 Gauge Galvanized Steel and 7/16" OSB Sheeting
PATCH SIZE
12" x 12" (305 mm x 305 mm)
OUTSIDE DIMENSIONS
16" x 16" (40.64 cm x 40.64 cm)
WOOD DIMENSIONS
11⅞" x 11⅞" (30.16 cm x 30.16 cm)
THICKNESS
7/16" (1 cm)
MATERIAL
24 Gauge Galvanized Steel and 7/16" OSB Sheeting
