Tile Components
A complete roofing system for long-term performance and beauty.

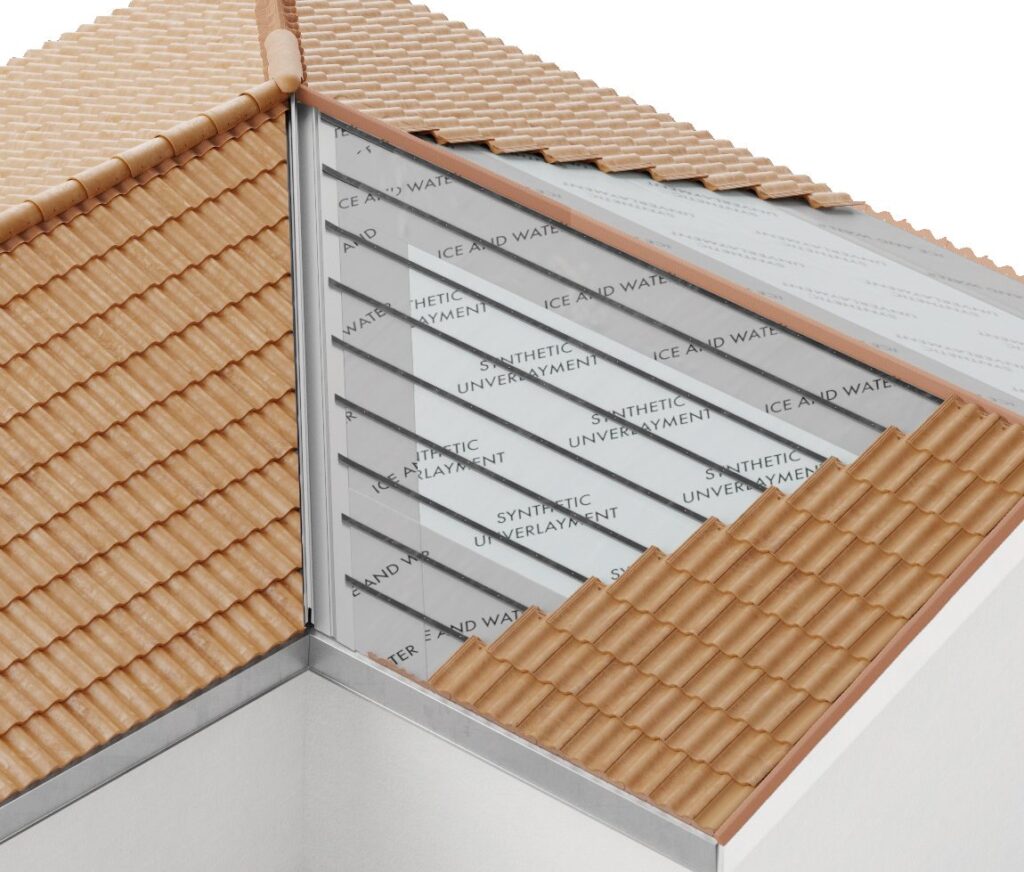

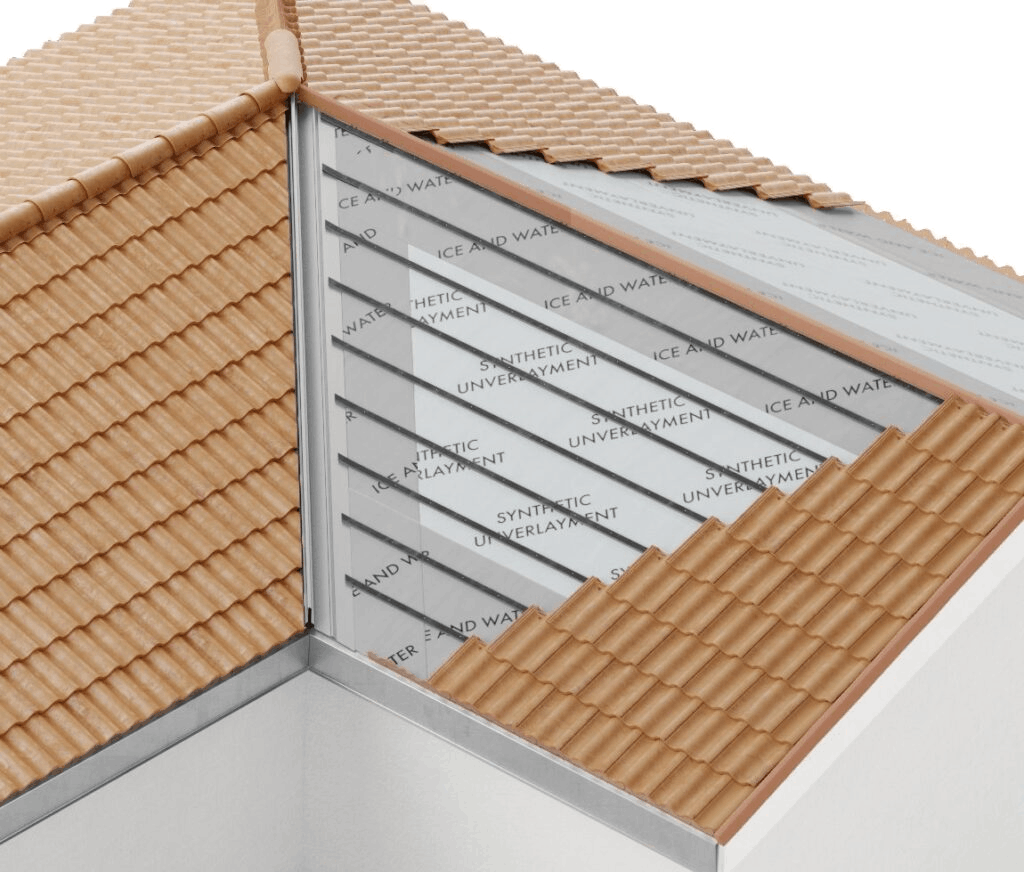

At the heart of the Quarrix system is a robust set of innovative products that work together to protect your investment and maintain the beauty of your home. Quarrix tile components provide the foundational support tile roofs need to protect against aging and fail points caused by water drainage, poor air-circulation, mortar joints and challenging roof angles. Experience long-term performance, beauty, and peace of mind with Quarrix tile components.

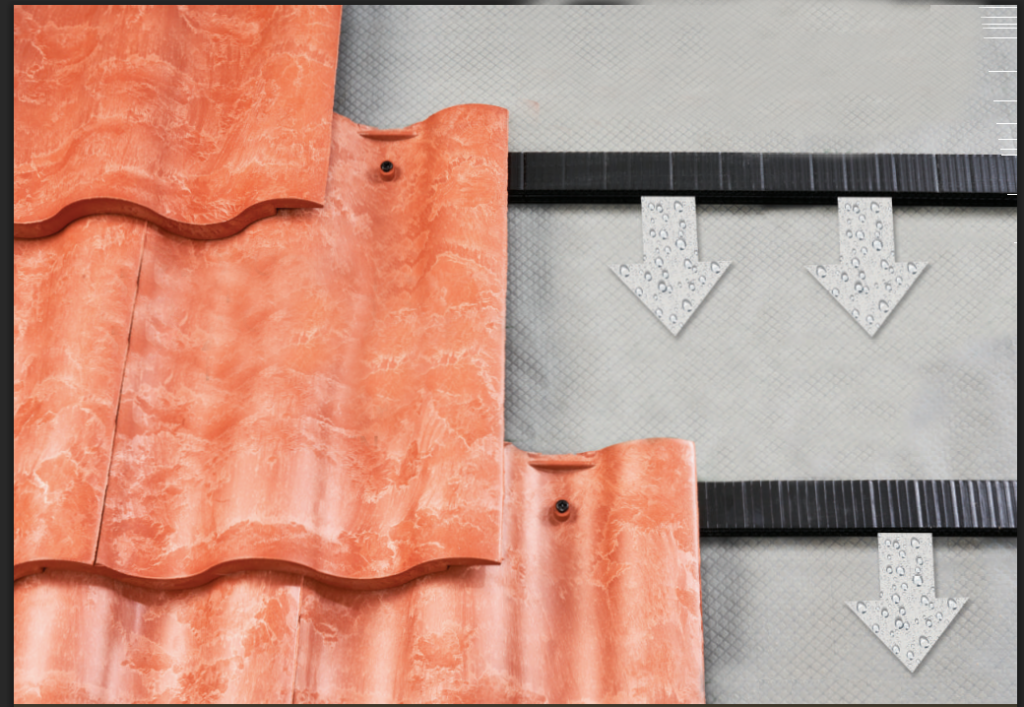

1. DryRoof Roof Batten
At the heart of the Quarrix system is a robust set of innovative products that work together to protect your investment and maintain the beauty of your home. Quarrix tile components provide the foundational support tile roofs need to protect against aging and fail points caused by water drainage, poor air-circulation, mortar joints and challenging roof angles. Experience long-term performance, beauty, and peace of mind with Quarrix tile components.
Product Specs
| #60917 |
|---|
| Black |

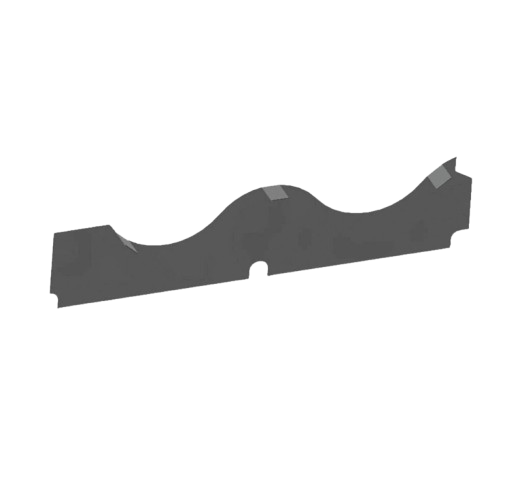

2. Lower Metal Eave Closures
Quarrix Lower Metal Eave Closures (also known as “bird stop”) are engineered with high-quality Kynar-coated, G90 galvanized steel that’s pressure fitted to snugly snap into the ends of Quarrix field tiles. Placed on eave edges, they completely fill the void along the lower roof edge, keeping birds and other pests from entering and nesting underneath the roof tiles, with a weep hole to allow moisture under the tile to escape. Offered in a range of colors to complement your tiles, they blend seamlessly with the roof’s appearance, maintaining the visual integrity of the roofline while providing essential protection.
Product Specs
| #2014DR | #2014CE | #2014SB | #2014GR | #2014SG/BK |
|---|---|---|---|---|
| Desert Red | Canyon Earth | Saddle Brown | Goldenrod | Black use with sage |

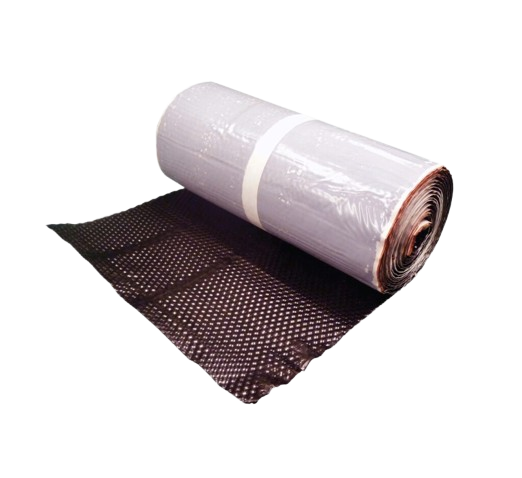

3. Universal Flashing
Quarrix Universal Flashing is a versatile all-in-one rollable flashing product that can be used as primary flashing, counter flashing, or combined with bent metal flashings. Our fully-adhered aluminum construction includes a unique butyl backing that provides a weather-tight seal for a wide range of roof applications, including: headwalls, chimneys, hips, ridges, gable ends, skylights and pipe stacks. Engineered for expandability, it can be contoured to complex shapes without specialty tools, and its superior combination of features prevents water leakage and structural damage to a range of roofing materials, including asphalt, clay, concrete, steel and synthetic roof tile.
Product Specs
| #226490 | #227289 | #227290 | #227291 |
|---|---|---|---|
| Black (use with Sage) | Terra Cotta (use with Desert Red) | Venetian Red (use with Canyon Earth) | Brown |

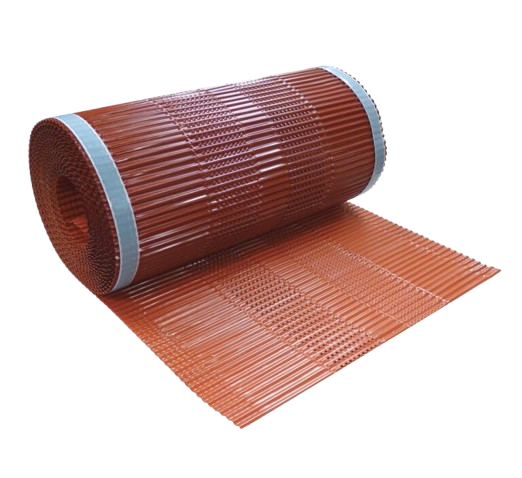

4. Tile Deck Vent
Quarrix Tile Deck Vent facilitates optimal attic ventilation and airflow beneath tiles, creating a superior cool roof system. Our all-in-one, rollable tile roof ridge vent combines ridge ventilation and weather blocking in one seamless solution. Constructed of durable, UV-resistant aluminum with a synthetic release liner, it’s designed to contour to complex shapes for a clean, seamless appearance — with a peel-off butyl adhesive for quick and easy installation.
Product Specs
| #227292 | #227295 | #227293 | #227294 |
|---|---|---|---|
| Black (use with Sage) | Terra Cotta (use with Desert Red) | Venetian Red (use with Canyon Earth) | Brown |

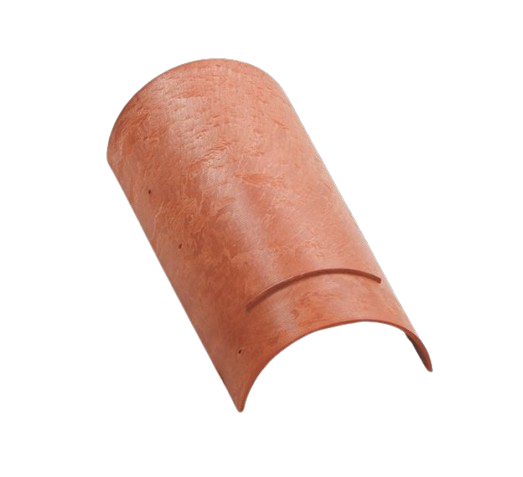

5. Hip/Ridge/Rake Tile
Our versatile Hip/Ridge/Rake tile can be used on rake edges to complete a traditional tile aesthetic or to box in the rake and butt tile to the rake edge for a distinct appearance, providing a finished look while preventing water intrusion.
Product Specs
| #2010DR | #2010CE | #2010SB | #2010GR | #2010SG | #2010SG/BK |
|---|---|---|---|---|---|
| Desert Red | Canyon Earth | Saddle Brown | Goldenrod | Sage | Black |

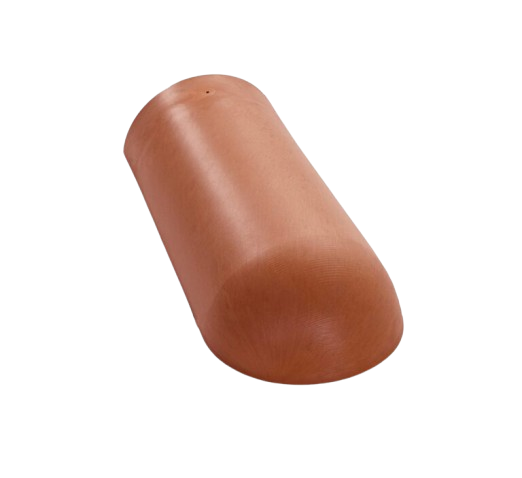

6. Hip Starter Tile
Our easy-to-install hip starter tile is designed to complete a beautiful traditional tile look. Simply begin on the eave edge and continue up the rake with hip/ridge/rake trim tile. For applications requiring intersections of multiple hips (or ridge and hips), hip starter tile can be coped to provide a seamless, sophisticated appearance.
Product Specs
| #2011DR | #2011CE | #2011SB | #2011GR | #2011SG | #2011SG/BK |
|---|---|---|---|---|---|
| Desert Red | Canyon Earth | Saddle Brown | Goldenrod | Sage | Black |

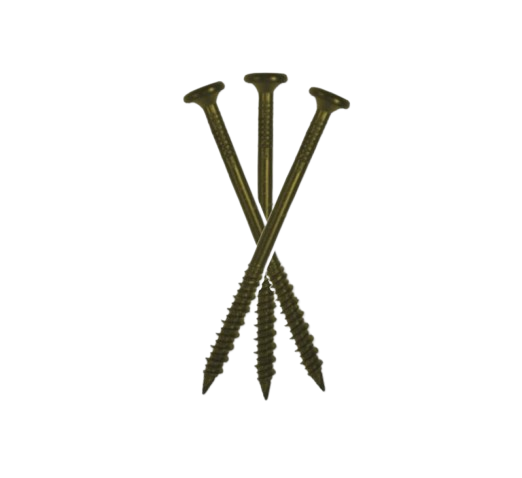

7. Tile Fasteners
Quarrix Tile Fasteners are the ideal choice for securing composite roof tile to the roof deck. Engineered with heavy-duty, corrosion resistant, exterior grade tile roofing screws, they’re tested to the SAE J78 standard and built to last, meeting all installation specifications. And with their high-low thread configuration and spade-point, they easily penetrate wood, steel and composite materials for rapid installation and long-lasting performance.
Product Specs
| #217849 | #217851 |
|---|---|
| Black (1200 screws per pail) | Black (100 screws per pail) |
