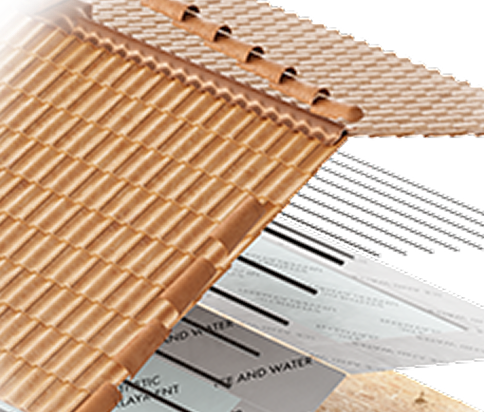

A complete roofing system for long-term performance and beauty.
At the heart of the Quarrix system is a robust set of innovative products that work together to protect your investment and maintain the beauty of your home. Quarrix tile components provide the foundational support tile roofs need to protect against aging and fail points caused by water drainage, poor air-circulation, mortar joints and challenging roof angles. Experience long-term performance, beauty, and peace of mind with Quarrix tile components.
1. DryRoof Roof Batten
Ensure proper water drainage and airflow for long-lasting protection
under composite, concrete and clay tiles with DryRoof Roof Batten from Quarrix. DryRoof Roof Batten installs directly to the roof deck to elevate the roofing material, providing optimal ventilation and drainage for superior protection. Unlike traditional wood battens, which are prone to rotting and cracking, our battens are constructed from premium corrugated HDPE, making them 100% resistant to moisture and enabling them to withstand years of rain, snow and ice buildup. They also provide exceptional UV-resistance. Experience the Quarrix System Advantage with DryRoof Roof Batten.
Product Specs
| #60917 | #2014CE | #60917 | #2014GR | #2014SG/BK |
|---|---|---|---|---|
| Desert Red | Canyon Earth | Desert Red | Goldenrod | Black Use with Sage |
2. Lower Metal Eave Closures
Quarrix Lower Metal Eave Closures (or ‘bird stop’) are made from durable Kynar-coated G90 galvanized steel and snap securely into tile ends at the eave. They block birds and pests, include a weep hole for drainage, and come in colors that blend seamlessly with your roofline for lasting protection and curb appeal.
Product Specs
| #60917 | #2014CE | #60917 | #2014GR | #2014SG/BK |
|---|---|---|---|---|
| Desert Red | Canyon Earth | Desert Red | Goldenrod | Black Use with Sage |
3. Universal Flashing
Quarrix Universal Flashing is an all-in-one rollable flashing product that can be used as a primary flashing, a counter flashing, or in combination with bent metal flashings. A fully-adhered, expandable aluminum flashing designed with a unique butyl backing that provides a weather-tight seal on the following roof applications: headwall, chimney, hip, ridge, gable end, skylight or pipe stack. The expandable nature of the roll flashing allows it to contour to complex shapes with no specialty tools needed. The superior features of Quarrix Universal Flashing prevent against water leakage and structural roof damage to most roofing materials including asphalt, clay, concrete, steel and synthetic roof tile.
Product Specs
| #60917 | #2014CE | #60917 | #2014GR |
|---|---|---|---|
| Desert Red | Canyon Earth | Desert Red | Goldenrod |
4. Tile Deck Vent
Quarrix Tile Deck Vent delivers optimal attic ventilation and a cooler roof system. This rollable ridge vent combines ventilation and weather blocking in one, made of durable UV-resistant aluminum with peel-and-stick butyl adhesive for fast, seamless installation.
Product Specs
| #60917 | #2014CE | #60917 | #2014GR | #2014SG/BK |
|---|---|---|---|---|
| Desert Red | Canyon Earth | Desert Red | Goldenrod | Black Use with Sage |

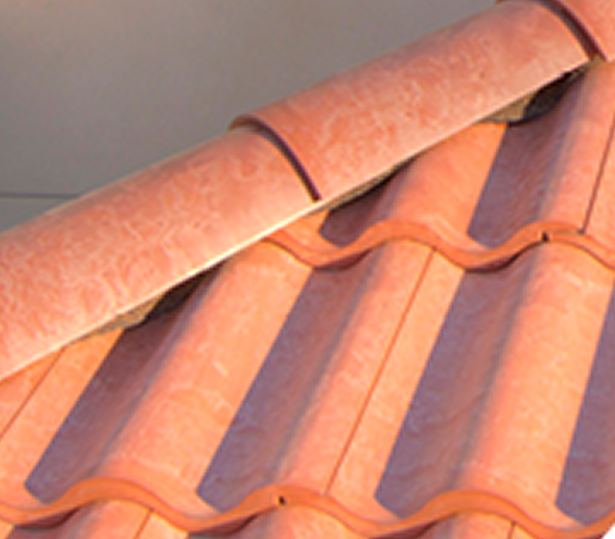

5. Hip/Ridge/Rake Tile
Our versatile Hip/Ridge/Rake tile can be used on rake edges to complete a traditional tile aesthetic or to box in the rake and butt tile to the rake edge for a distinct appearance, providing a finished look while preventing water intrusion.
Product Specs
| #60917 | #2014CE | #60917 | #2014GR | #2014SG/BK |
|---|---|---|---|---|
| Desert Red | Canyon Earth | Desert Red | Goldenrod | Black Use with Sage |
6. Hip Starter Tile
Our easy-to-install hip starter tile is designed to complete a beautiful traditional tile look. Simply begin on the eave edge and continue up the rake with hip/ridge/rake trim tile. For applications requiring intersections of multiple hips (or ridge and hips), hip starter tile can be coped to provide a seamless, sophisticated appearance.
Product Specs
| #60917 | #2014CE | #60917 | #2014GR | #2014SG/BK |
|---|---|---|---|---|
| Desert Red | Canyon Earth | Desert Red | Goldenrod | Black Use with Sage |
7. Tile Fasteners
Quarrix Tile Fasteners are the ideal choice for securing composite roof tile to the roof deck. Engineered with heavy-duty, corrosion resistant, exterior grade tile roofing screws, they’re tested to the SAE J78 standard and built to last, meeting all installation specifications. And with their high-low thread configuration and spade-point, they easily penetrate wood, steel and composite materials for rapid installation and long-lasting performance.
Product Specs
| #2014CE | #60917 |
|---|---|
| Canyon Earth | Desert Red |
