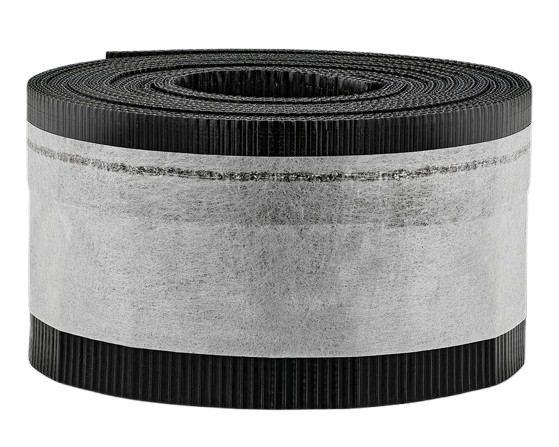

OffRidge Intake & Exhaust Vent
On-deck ventilation for hard to vent areas.
Easily and effectively ventilate difficult to vent roof decks — including roof-to-wall and fire walls — with the OffRidge Intake & Exhaust vent by Quarrix. Perfect for homes with closed, boxed-in soffits or no overhang, OffRidge allows you to install intake ventilation along the bottom third of the roof deck, avoiding unsightly protrusions for a clean, neat appearance.
Equipped with our patented weather-blocker membrane and made of premium HDPE plastic, it can withstand the impact of hail and other elements.
Our OffRidge Intake and Exhaust vent delivers the best on-deck and off-ridge ventilation with the sleekest design for a seamless, sophisticated look.
Product Features

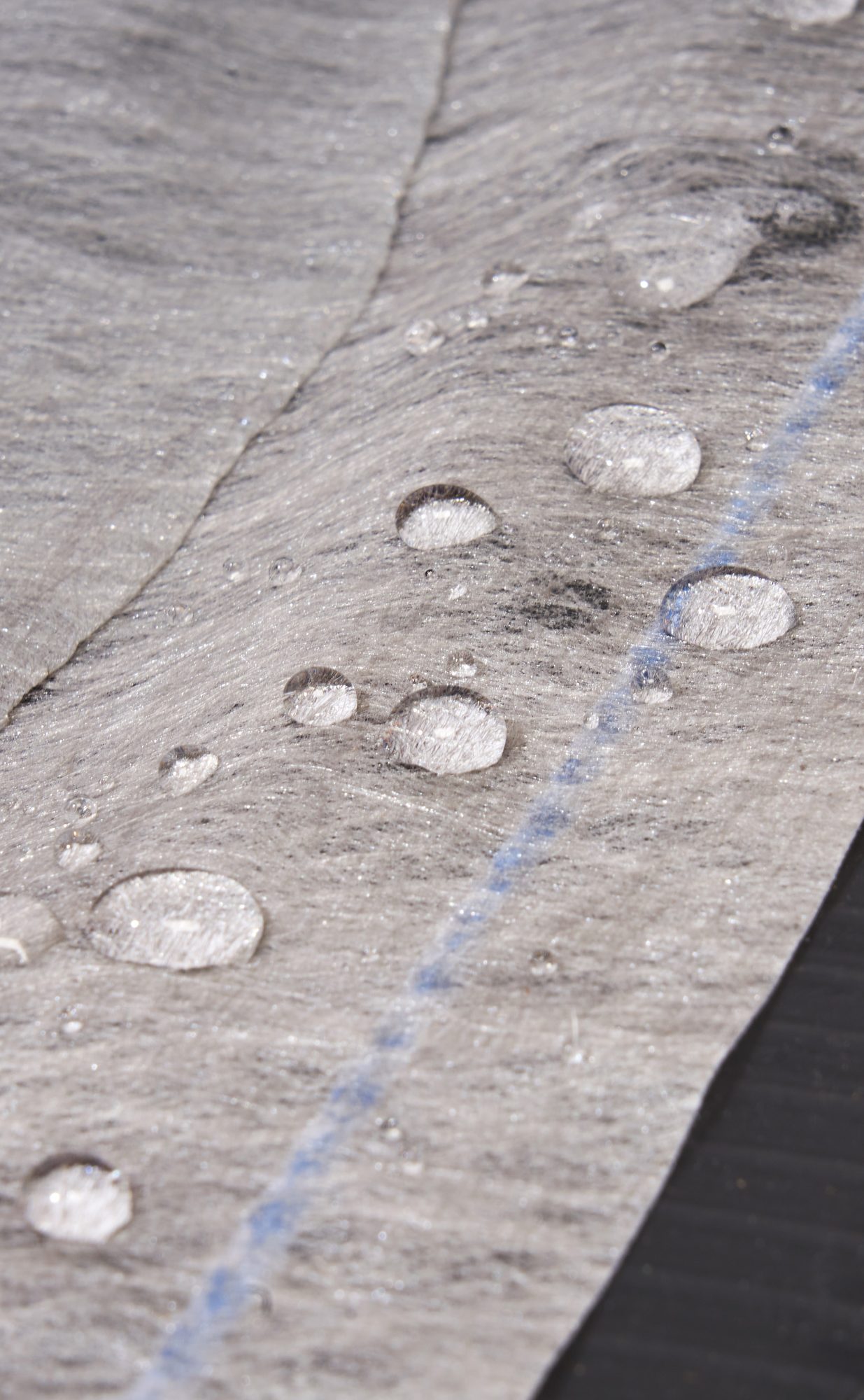

Weather Resistant
Blocks rain, snow, and wind

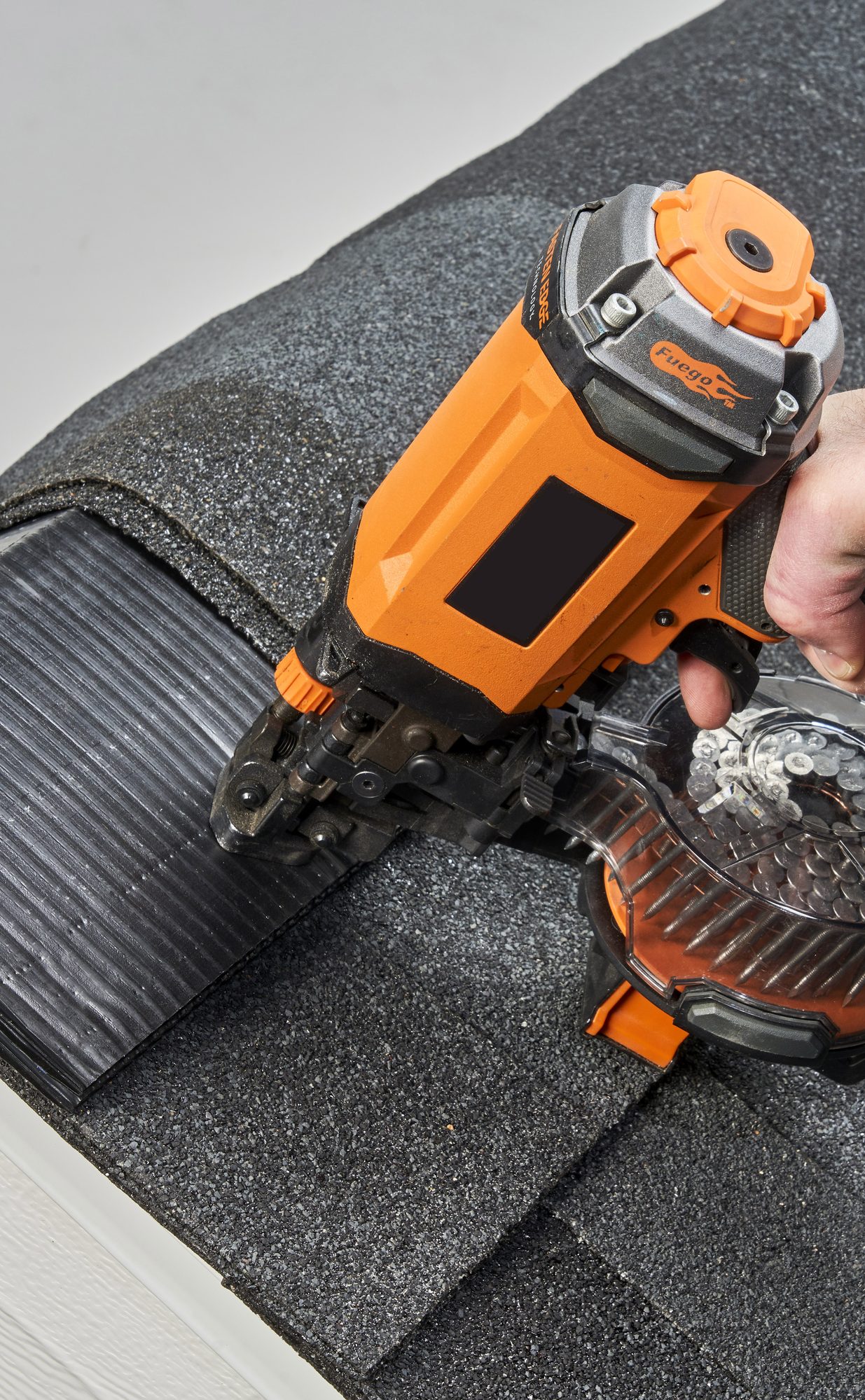

Gun Nailable
Quick and easy installation using a nail gun

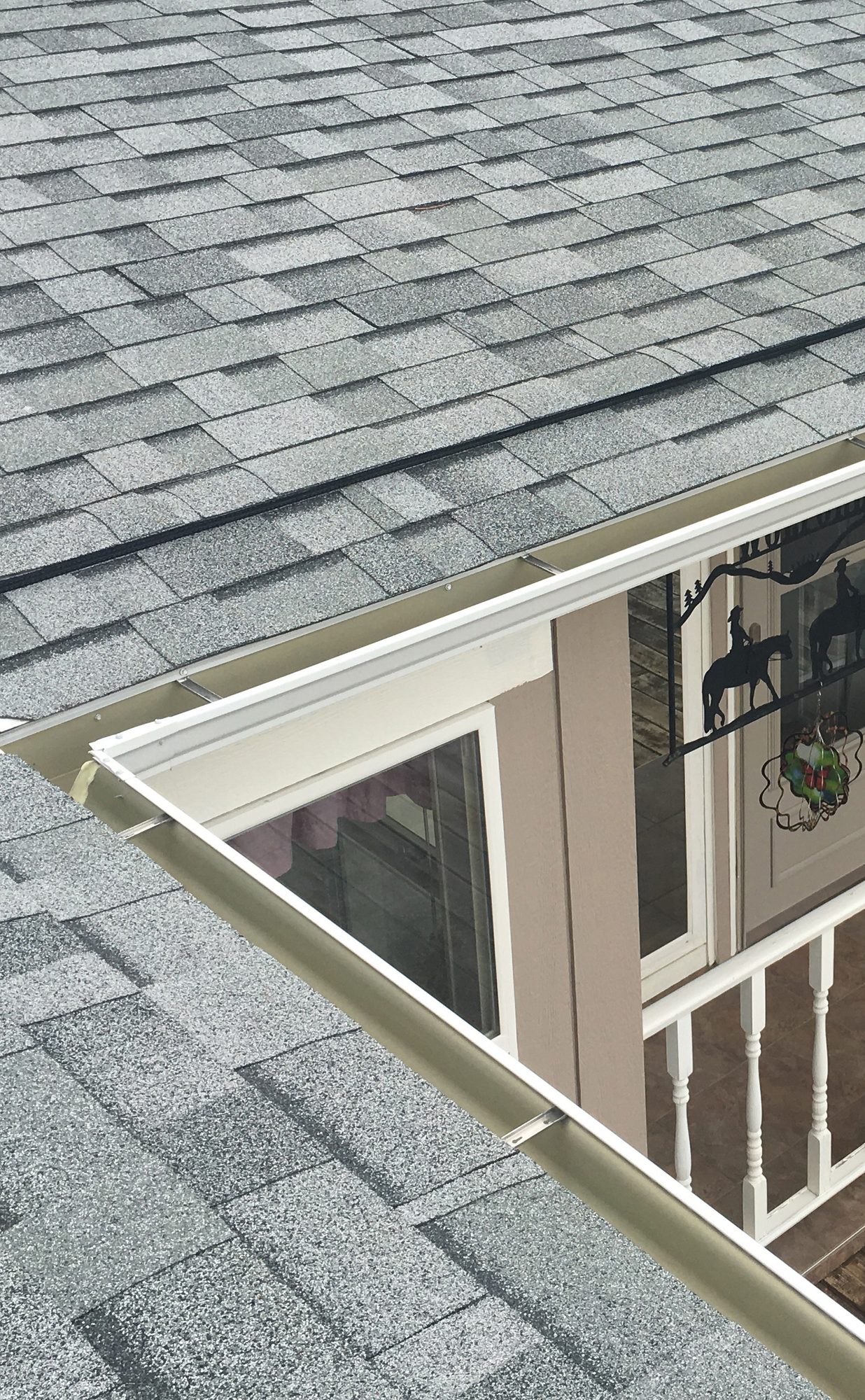

Eave Edge Intake
Enables continuous intake airflow in a sleek design

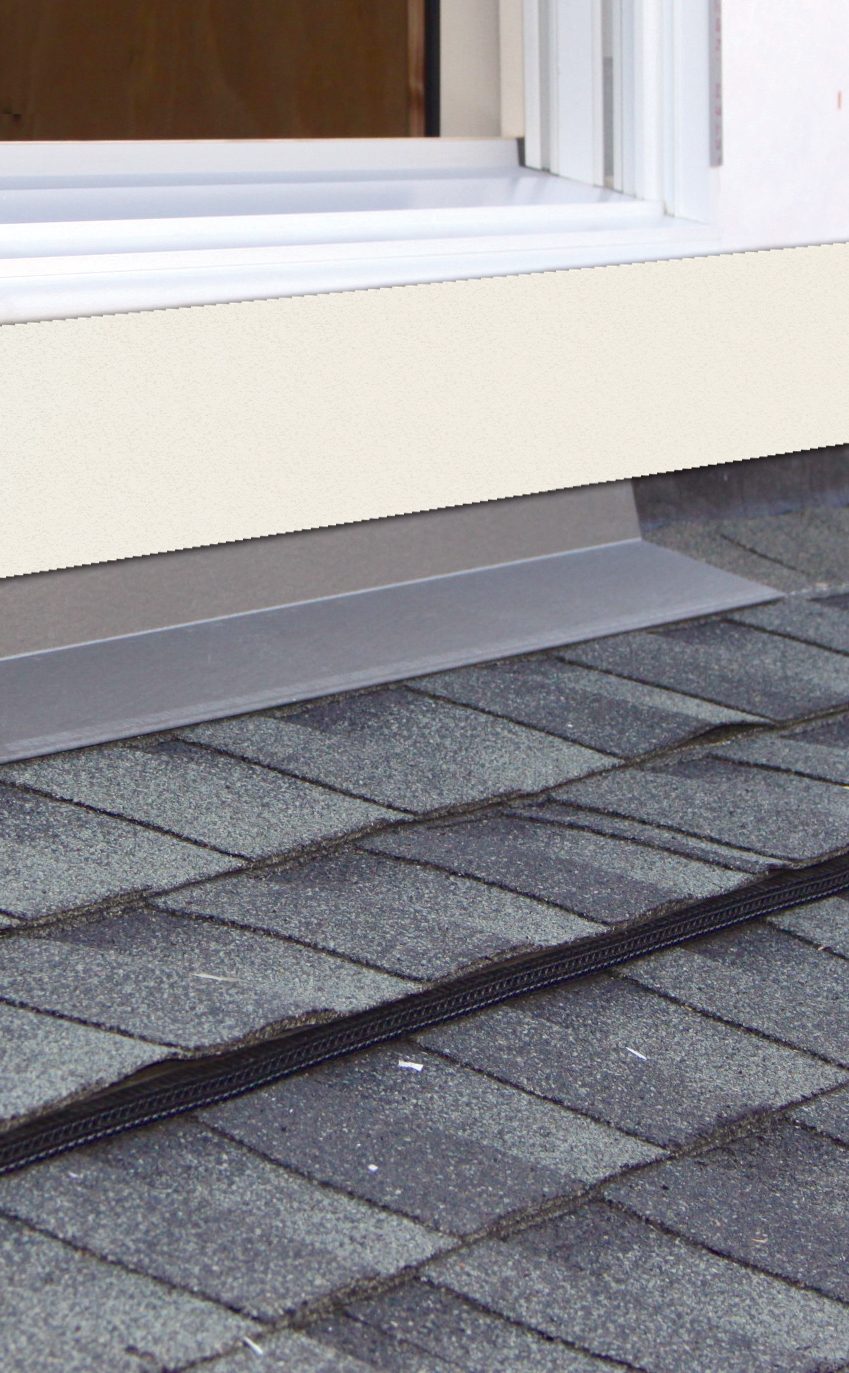

Roof-to-Wall Exhaust
Provides balanced ventilation for difficult-to-vent areas
Product Specifications
| PART # | #61071 |
|---|---|
| STYLE | Roll |
| LENGTH | 20' (6.1 m) |
| WIDTH | 8¼" (20.96 cm) |
| HEIGHT | 5/8" (15.875 mm) |
| SLOPE/PITCH | 3:12 – 20:12 |
| NFA sq in | 6.35 |
| MATERIAL | HDPE Plastic |
| ROOF TYPE | Asphalt, Cedar Shakes, Standing Seam Metal, Slate, Flat Tile, Barrel Tile |
